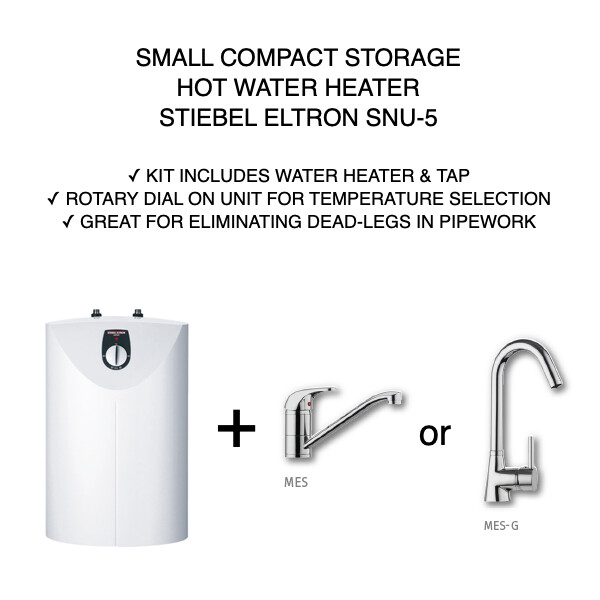

SMALL Compact Storage Hot Water Heater 1-Phase SNE-5 with TAP KIT
Made in Germany the Stiebel Eltron SNU 5 under sink open vented water heater delivers hot water quickly to a single sink. This point of use water heater eliminates long runs of pipework for isolated sinks and reduce the waiting time for hot water to arrive at the outlet. They are conveniently installed directly underneath the sink and must be fitted with specialised open vented tapware (supplied as part of this kit).
Features & Description
High quality design
- Made in Germany
- Designed for single isolated sink
- WaterMark approved. Lic No. WMKA00301, AS3498
- Available in 5 litre (SNU 5) or 10 litre (SNU 10) tank capacity
Energy and water saving
- Low minimum standby power consumption
Easy installation
- Compact space saving design
- Installed underneath the sink for single point of use
- 240V - three-pin power cord with earthed plug 10Amp
- Open vented design must be fitted with specialised tapware
- No safe tray required
- No ventilation required
Warranty
- 5-year domestic water heater warranty
- 1-year commercial water heater warranty
Tapware warranty is provided by ENWARE Australia. Click here for more information.

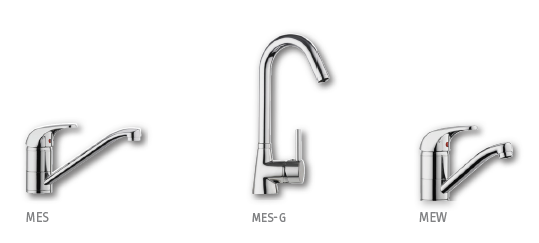

Tap Choices for use with the SNU (included in your installation kit):
PLEASE NOTE: THE SNU WATER HEATER IS OPEN VENTED AND MUST BE INSTALLED WITH A STIEBEL ELTRON OPEN VENTED TAP (MES, MEW, OR MES-G TAP). TEMPERING VALVES, WATER FILTERS ON THE TAP OR NON APPROVED AERATORS CANNOT BE FITTED TO THIS HOT WATER SYSTEM.
Kit Contents
Included in Kit:
- 1x Compact Storage SNU water heater
- 1x MES, MEW, or MES-G tap suitable for SNU open vent water heater
Possibly required on-site according to installation type:
- Cold Water Feed Isolation Valve
Learn More: Hot Water Heat Pump Knowledge
White Paper by Stiebel Eltron -> The Benefits of Decentralising Hot Water Systems in Multi-residential Buildings
Video by Stiebel Eltron -> Why use an instantaneous water heater?:
FAQ
- What else do I need to complete the installation? Generally all that's required is a power supply ... apart from this, nothing, we send out a kit that can be installed immediately. Please note that to comply with regulations some installation types may require additional valves (see above in Kit Contents).
- What is the warranty on the water heater? Stiebel Eltron provides a 5-year domestic warranty, and a 1-year commercial warranty on the SNU units.
- Can I install the SNU water heater with my existing sink mixer? No, the SNU water heater is open vented and requires a specialised open vented sink mixer.
- Does this water heater create hot water that is hot enough to make tea and coffee? No, the SNU is designed to provide hot and cold water to a sink. This unit is not a boiling or chilled system.
- If I run out of hot water how long will it take for the SNU hot water available? The SNU recovers at approximately 1 litre a minute.
- Can I connect two taps to the SNU open vented water heater? No, the SNU water heater is designed as a single point of use water heater and can only be operated with one open vented sink mixer.
- My SNU 10 drips water from the spout, is this normal? Yes, as hot water heats up and expands it will drip from the tap. This only occurs while heating on the 10 litre unit. The SNU 5, on the other hand, incorporates a Drip-Stop function so the open vented taps fitted to the SNU 5 will not drip when heating.
- What happens after I order the unit and pay? We will be in contact with you to confirm the order, delivery address and timeframe, and any other questions you may have.
- How long until I receive my order, and is there a delivery fee? Within Australian state/territory capital cities delivery is free (excluding Darwin), and your order will usually arrive within 3 business days. For orders outside of capital cities, we offer a flat-rate fee of $200 for delivery.
Additional Products
- Highly Effective Water Filtration Systems by Stiebel Eltron available at Stiebel Store
- Complete Installation of this Water Heater (Perth only) from $500.00+GST by Euroheat Australia
Technical Data
| Model number | SNU-5 | SNU-10 |
| Tank Capacity | 5L | 10L |
| Rated Output (415V) | 2.2kW | 2.2kW |
| Rated Current (415V) | 9.1A | 9.1A |
| Connection | 1/N/PE | 1/N/PE |
| Fuse Protection | 10A | 10A |
| Mixed water volume at 40°C | 10L | 19L |
| Temperature Settings | 30 - 85°C | 30 - 85°C |
| Water Connections | G 1/2 A | G 1/2 A |
| Max. Permissible Pressure | 0kPa | 0kPa |
| Max. Tapware Permissible Pressure | 500kPa | 500kPa |
| IP Rating | IP24 D | IP24 D |
| Height | 421mm | 503mm |
| Width | 263mm | 295mm |
| Depth | 230mm | 175mm |
| Weight | 3.0Kg | 4.6Kg |
| Colour | White | White |
Downloads
SNU 10 Operation and Installation Guide PDF 12.56 MB
SNU 5 Operation and Installation Guide PDF 16.55 MB
SNU 5 / SNU 10 Warranty PDF 110.45 kB
