VLR 70 S through-wall heat recovery ventilation kit, 2 pairs (4 units)
Stiebel Eltron VLR 70 S kit, 2 pairs · 100-HRV-D2KIT

VLR 70 S through-wall heat recovery ventilation kit, 2 pairs (4 units)

4 VLR 70 S through-wall units with the power supply and controller: fresh, filtered air for about 140 m² with no ducts, keeping up to 92% of the heat.

~140 m²floor area
92%heat recovery, up to
35 dB(A)sound power at 20 m³/h
4VLR 70 S units
$3,148.20

GST included

Australian stock · ships in 3-5 business days
  • Free delivery to capital citiesExcept Darwin. Elsewhere a flat $200.
  • Genuine Stiebel Eltron, Australian stockWith the manufacturer's Australian warranty.
  • Tax invoice by emailYou need it for warranty and rebate claims.
  • Secure checkoutVisa, Mastercard (Stripe) or bank transfer.
Right for: Existing homes and apartments of about 140 m² with outside walls 100 to 300 mm thick.
Not for: Walls thicker than 300 mm (the VLR 70 L is needed), or whole new houses where a ducted system is planned.

What you get

The units work in pairs. While one supplies fresh air, its partner extracts stale air; every 40 seconds or so they swap. In extract mode the heat exchanger stores the heat from the outgoing air, and in supply mode it hands it to the fresh air coming in.

They are quiet, not silent: keep them 2 to 3 metres from a bedhead, with a gap of about 15 mm under bedroom doors so the air can move.

In the box

  • 2 pairs (4 units) of VLR 70 S through-wall ventilation units
  • 1 system power supply

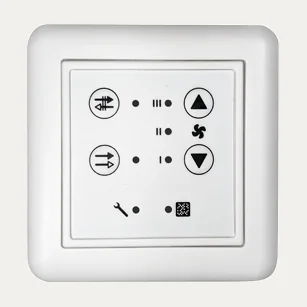

  • 1 VLR controller (runs up to 8 units)
Installer brief

What your plumber and electrician need to know

Send this to your installer before you order and ask for a fixed price. If anything here doesn't suit your house, you find out before you spend.

  • Each unit needs a hole through an outside wall; plan positions in pairs, on opposite sides of the home where possible.
  • A licensed electrician connects the power supply.

From the manufacturer's installation documents. Installation must follow them and the rules in your state.

Wall thickness100-300 mm (VLR 70 S)
Wall openingRound 200 mm, or 185 x 185 mm
Power, 8 units100-240 V, 92 W, 3.8 A
Air flow per pair10-70 m³/h
Operating range-14 to +40°C

Technical data

Units4 x VLR 70 S Trend
Floor areaabout 140 m²
Heat recoveryup to 92%
Air flow per pair10-70 m³/h
Noise35 dB(A) sound power at 20 m³/h
FiltersePM1 50% (F7) / ISO Coarse 30% (G2)
Wall thickness100-300 mm
Unit size285 x 360 mm (cover)
