Stiebel Eltron SNU 5 Plus · 232381

SNU 5 Plus under-sink water heater, 5 litres, with tap

Name: SNU 5 Plus under-sink water heater, 5 litres, with tap
Brand: Stiebel Eltron
SKU: 232381
Availability: InStock

A 5 litre plug-in heater for one sink, sold with the open-vented tap it needs. No drain and no relief valve, so it is the simplest install there is.

5 Ltank

10 Lof 40°C water

2.2 kW10 A plug

35-85°Cdial

from$839

GST included · 10 taps, choose below

Choose your tap

Free delivery to capital citiesExcept Darwin. Elsewhere a flat $200.
Genuine Stiebel Eltron, Australian stockWith the manufacturer's Australian warranty.
Tax invoice by emailYou need it for warranty and rebate claims.

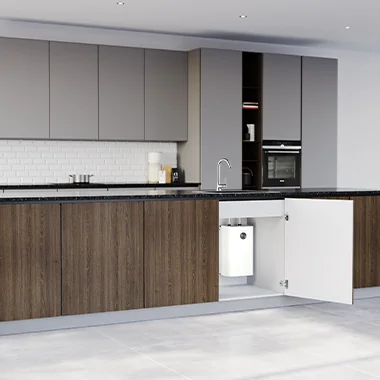

Right for: One kitchen, laundry or bar sink far from the main hot water system.
Not for: Hand basins (a tempering valve cannot be fitted), or more than one outlet.

Choose your tap

The heater comes with the tap you choose. The open-vented SNU works only with these Stiebel Eltron taps.

Choose a photo to see that tap.

Choose	Code	Price

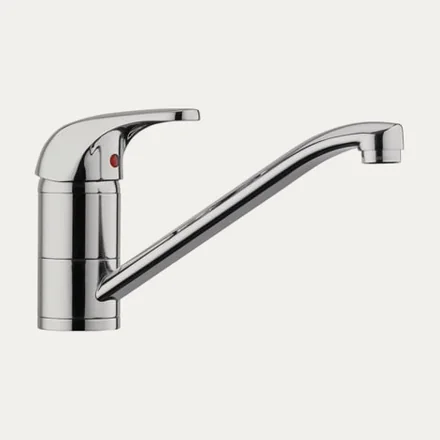

SNU 5 Plus + MES standard sink mixer	232381	$839
SNU 5 Plus + MEW short spout mixer	232384	$979

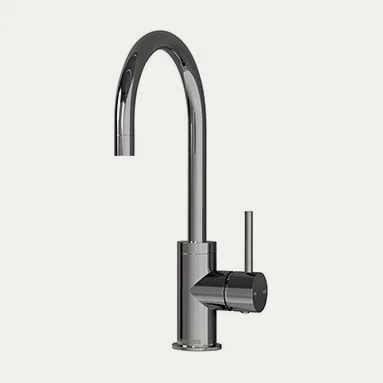

SNU 5 Plus + Gooseneck mixer, chrome	208197	$1,059

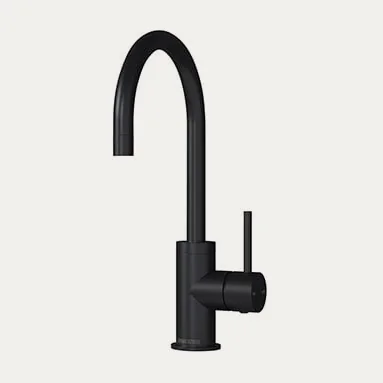

SNU 5 Plus + Gooseneck mixer, matte black	208198	$1,129

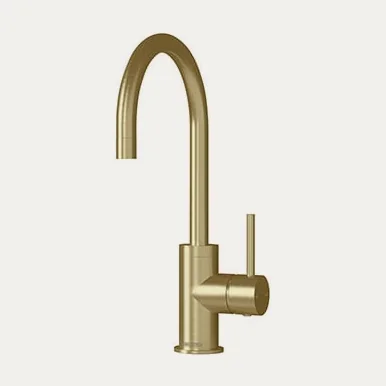

SNU 5 Plus + Gooseneck mixer, brushed gold	208199	$1,129

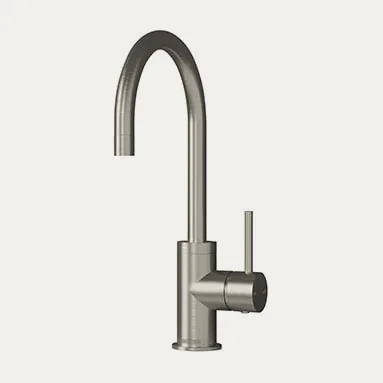

SNU 5 Plus + Gooseneck mixer, brushed nickel	208200	$1,289

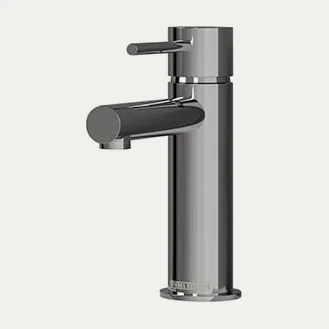

SNU 5 Plus + Fixed mixer, chrome	208205	$969

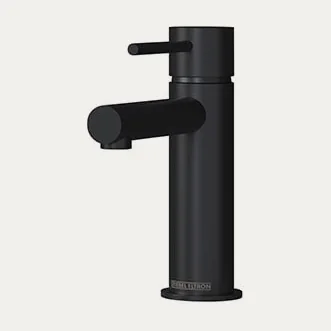

SNU 5 Plus + Fixed mixer, matte black	208206	$1,119
SNU 5 Plus + Fixed mixer, brushed gold	208207	$1,119

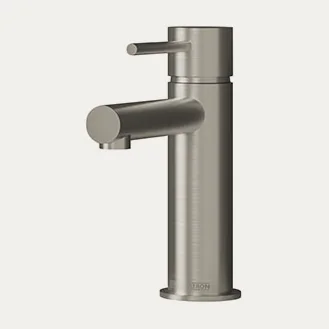

SNU 5 Plus + Fixed mixer, brushed nickel	208208	$979

Why this model

Plugs into a standard power point (2.2 kW, 9.1 A).
Rotary dial, adjustable from about 35 to 85°C.
Open-vented: no relief valve and no drain needed.
Frost protection when switched off; low standby loss.
Red Dot design award 2023.

Installer brief

What your plumber and electrician need to know

Send this to your installer before you order and ask for a fixed price. If anything here doesn't suit your house, you find out before you spend.

Open-vented: the spout vents the heater, so no aerator or filter may be fitted to it.
One outlet only, and not for a hand basin.

From the manufacturer's installation documents. Installation must follow them and the rules in your state.

Power	240 V single phase, plugs into a 10 A outlet (2.2 kW)
Size	423 x 240 x 212 mm
Weight	2.9 kg (empty)
Water connection	G 3/8 A
Tapware	Stiebel Eltron open-vented taps only (MES, MEW, Design-Kollektion Gooseneck or Fixed)

Technical data

Capacity	5 litres
Hot water at 40°C	10 litres
Rated output	2.2 kW
Current	9.1 A
Electrical	240 V, plug-in
Temperature setting	about 35 to 85°C
Tank	Polypropylene, open-vented
Protection	IP24
Size	423 x 240 x 212 mm
Weight	2.9 kg empty

Warranty

Domestic use: 5 years full parts and labour on the heater. Taps: MES and MEW 1 year; Design-Kollektion taps 5 years on the cartridge and parts, 1 year labour. Stiebel Eltron requires installation by a licensed plumber.
