Stiebel Eltron WWK 302 H · 232905

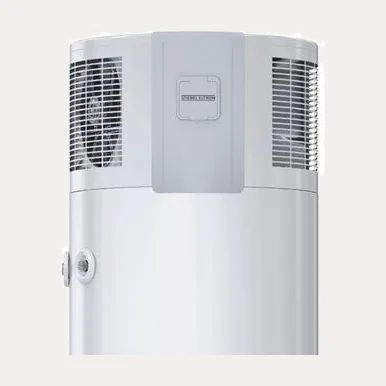

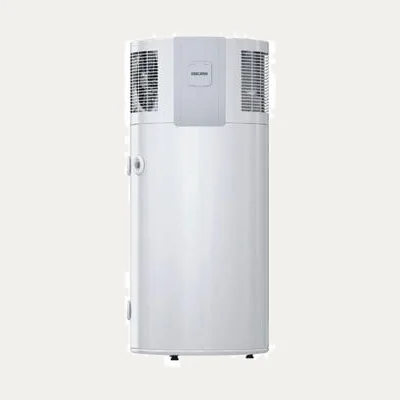

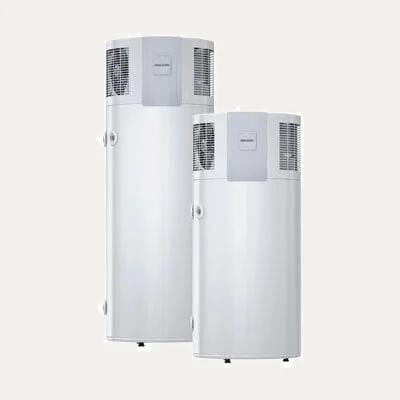

WWK 302 H hot water heat pump, 302 litres, with smart element

Stiebel Eltron's proven one-piece heat pump with an enamelled steel tank and a 1.7 kW smart element for big demand. For 5 to 6 people.

302 Ltank
540 Lof 40°C water
3.58COP, seasonal average
45 dB(A)at 1 m
-5°Cheat pump works down to
1.7 kWsmart element
$3,459 $1,890 under RRP

GST included · Stiebel Eltron RRP $5,349

In stock in Western Australia only · ships in 3-5 business days

We can only deliver this one to addresses in Western Australia.

Final stock. Call 08 6468 8895 before you order, so we can check one is still there for you. Monday to Friday, 9am to 4pm (Perth time, AWST).

Federal rebate (STCs) for a 2026 installation: about $532 in Sydney, Brisbane, Adelaide and Perth, $570 in Melbourne, Canberra and Tasmania. How to claim it

  • Free delivery to capital citiesExcept Darwin. Elsewhere a flat $200.
  • Genuine Stiebel Eltron, Australian stockWith the manufacturer's Australian warranty.
  • Tax invoice by emailYou need it for warranty and rebate claims.
  • Secure checkoutVisa, Mastercard (Stripe) or bank transfer.
Right for: Households of about 5 to 6 people, or hard-water areas (maintenance-free anode).
Not for: Victorians who want the Solar Homes rebate: the WWK is not on Solar Victoria's product list. Choose an SHP-O.

Why this model

  • Enamelled steel tank with a maintenance-free impressed-current anode: no anode to replace, hard or soft water.
  • Smart element (1.7 kW) heats the top 80 litres when the household draws a lot at once.
  • The heat pump draws only about 0.55 kW.
  • Active defrost; keeps heating down to -5°C.
  • Encased compressor: 45 dB(A) at 1 metre.
  • Solar input to heat the tank harder when your panels produce a surplus (external relay needed).

In the box

  • Heat pump unit with heavy-duty power lead
  • On site, depending on the installation: cold water isolation valve, expansion control valve, tempering valve
Installer brief

What your plumber and electrician need to know

Send this to your installer before you order and ask for a fixed price. If anything here doesn't suit your house, you find out before you spend.

  • Supplied without a plug: it has three bare wires (active, neutral and earth). A licensed electrician connects it to a 10 A circuit.
  • Bathrooms must get hot water at no more than 50°C, so the plumber fits a tempering valve.
  • Depending on the installation, an isolation valve and an expansion control valve are needed.
  • It needs a drain for condensate water.
  • Do not connect it to floor heating or radiators.

From the manufacturer's installation documents. Installation must follow them and the rules in your state.

Power240 V single phase, hard-wired to a 10 A circuit (no plug supplied). Max current 9.7 A (H model)
Height1,921-1,937 mm (adjustable feet)
Diameter690 mm
Weight135 kg empty, 437 kg full
Relief valvePTR valve, 850 kPa
Indoor spaceA room of at least 13 m³
RefrigerantR134a, sealed system

Technical data

Capacity302 litres
Hot water at 40°C540 litres
COP3.58 seasonal average (AS/NZS 4234 climate zone HP2-AU)
Heat pump power input0.55 kW (EN 16147, A15)
Smart element1.7 kW
Set / max water temperature61°C / 65°C
Operating range (air)-5 to +42°C
RefrigerantR134a, 0.85 kg
Air flow550 m³/h
Electrical240 V single phase
Max current9.7 A
Noise45 dB(A) average sound pressure at 1 m, free field (EN 12102)
Height1,921-1,937 mm
Diameter690 mm
Weight135 kg empty, 437 kg full
WaterMarkWMKA00301

Warranty

Domestic use: 5 years on the cylinder and condenser, 2 years on the sealed refrigeration system and electrical parts, 1 year on the relief valve. Stiebel Eltron requires installation by a licensed tradesperson and a certificate of compliance for a claim.
